Brakes are a crucial component of any bicycle, influencing not only safety but also overall performance. Among the various types available, cantilever and V brakes are two popular choices, especially for mountain and hybrid bikes. Each brake type has its unique characteristics, catering to different riding styles and conditions. Selecting the right brake can greatly impact your riding experience, making it essential to understand their differences and compatibility.
Cantilever brakes and V brakes are not interchangeable due to differences in design, mounting compatibility, and performance characteristics. While both serve the primary function of stopping the bike, they have distinct features that affect their installation and functionality. Knowing these differences can help cyclists make informed choices based on their specific needs and preferences.
When considering brake options, cyclists should be aware of how cantilever brakes utilize a more traditional design with two arms that operate independently, while V brakes feature a more modern configuration with greater stopping power. The differences in cable routing and adjustment mechanisms also play a role in their performance. Understanding these nuances will aid cyclists in selecting the most suitable braking system for their bike, ensuring a safer and more enjoyable ride on various terrains.
Brake Types Overview
Brakes play a vital role in cycling safety and performance. Two popular types of brakes are cantilever brakes and V brakes. Each has its unique design and functionality, making them suitable for different riding styles and conditions. Understanding these brake types helps cyclists make informed decisions about their setup.

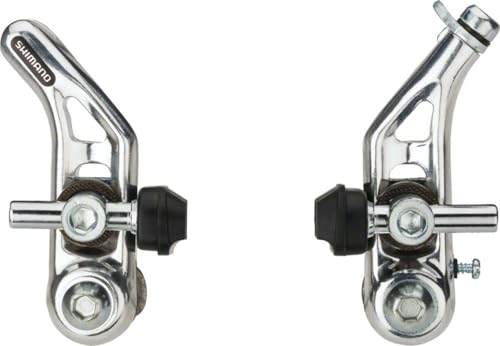

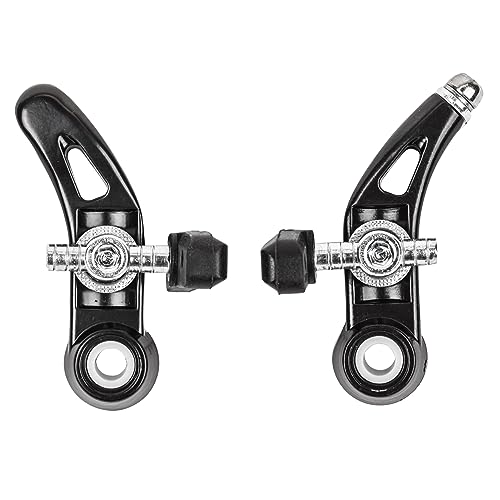

Cantilever Brakes
Definition and Design
Cantilever brakes are a type of rim brake commonly found on mountain and touring bikes. They consist of two arms that pivot independently from a central mount. This design allows each brake arm to move towards the rim when the brake lever is pulled. The setup features two brake pads that make contact with the rim, providing stopping power through friction.
The mechanical advantage of cantilever brakes comes from their ability to adjust the brake pad’s position relative to the rim. This feature allows for easier alignment and adjustment compared to some other brake systems. Additionally, they often use longer brake arms, which can provide better modulation and stopping control.
Common Uses and Advantages
Cantilever brakes are well-suited for various cycling disciplines, including mountain biking and touring. Here are some advantages:
- Lightweight: Cantilever brakes are typically lighter than their V brake counterparts. This feature is beneficial for cyclists looking to minimize bike weight.
- Adjustability: Riders can easily adjust the brake pads’ height and angle. This flexibility ensures optimal contact with the rim, enhancing braking performance.
- Versatility: Cantilever brakes work well with wider tires, making them suitable for different terrains. They are particularly effective in muddy or wet conditions, where larger tires are common.
- Rim Compatibility: Since cantilever brakes use a two-arm system, they can fit a wider range of rim sizes. This compatibility is an essential factor for cyclists who switch between different wheelsets.
V Brakes
Definition and Design
V brakes, also known as linear pull brakes, are a more modern alternative to cantilever brakes. They feature two arms that are pulled together by a single cable when the brake lever is activated. This design allows for a powerful and direct braking action, making V brakes a popular choice for mountain bikes.
V brakes are characterized by their shorter brake arms compared to cantilever brakes. This design improves their response time, providing quicker stops. The brake pads also have a wider contact area with the rim, enhancing stopping power.
Common Uses and Advantages
V brakes are widely used in mountain biking and hybrid bicycles due to their efficiency and effectiveness. Here are some advantages:
- Superior Stopping Power: V brakes offer greater braking force than cantilever brakes. This feature is crucial for downhill riding and technical trails, where quick stops are necessary.
- Simplicity in Installation: V brakes are often easier to install than cantilever brakes. The single cable design simplifies setup and maintenance.
- Better Clearance: V brakes provide better clearance for wider tires. This advantage makes them suitable for bikes designed for rougher terrains.
- Consistent Performance: V brakes deliver consistent braking performance across different conditions. This reliability is essential for riders facing various weather and trail conditions.
Key Differences
Both cantilever and V brakes serve the primary function of stopping the bike, but they do so in different ways. Understanding these differences helps cyclists choose the best option for their riding style.
Design Variations
Construction Differences
The construction of cantilever and V brakes varies significantly. Cantilever brakes feature two separate arms, each functioning independently. This design allows for better modulation but may require more adjustments during setup. In contrast, V brakes have a single cable pulling both arms together, simplifying the installation process and reducing potential misalignments.
Brake Arm Length and Positioning
The length of the brake arms also plays a crucial role in performance. Cantilever brakes typically have longer arms, allowing for greater leverage when braking. This feature enhances modulation and control, particularly when descending steep hills. V brakes, with their shorter arms, provide a more direct feel when applying the brakes, leading to faster response times.
Performance Aspects
Stopping Power Comparison
When it comes to stopping power, V brakes generally outperform cantilever brakes. The direct pull mechanism allows V brakes to generate more force, making them ideal for aggressive riding styles. This enhanced stopping power is crucial in situations where immediate braking is necessary, such as navigating steep descents or technical terrain.
Modulation and Feel
Modulation refers to how well a brake system allows the rider to control the braking force. Cantilever brakes provide a more gradual and nuanced feel, allowing riders to fine-tune their stopping power. This feature is particularly beneficial in technical sections where precise control is essential.
Conversely, V brakes deliver a more immediate braking response. This direct feel can be advantageous in situations where quick stops are required. However, it may take some time for riders to adapt to the feel, especially if they are used to cantilever brakes.
Interchangeability Factors
Choosing between cantilever brakes and V brakes is not just about performance; it’s also about compatibility. Understanding how these brake types fit on your bike is crucial for a successful setup. Several factors influence their interchangeability, including mounting compatibility and cable routing.
Mounting Compatibility
Frame and Fork Considerations
The frame and fork of your bike are essential when considering brake compatibility. Different bike designs may have specific requirements for brake installation. Cantilever brakes require dedicated mounting points on the frame and fork. These mounting points are usually located near the top of the seat stays and the fork blades.
When switching to V brakes, it’s crucial to check if your frame has the correct mounting points. V brakes need a single mounting hole on the frame and fork, typically located at the top. If your bike lacks these points, installing V brakes may not be possible without modifications.
Mounting Points and Spacing
The spacing between the mounting points is also important. Cantilever brakes usually have wider mounting points compared to V brakes. This difference can affect how well the brake arms align with the rim. For optimal performance, ensure that the mounting points are spaced correctly based on the brake type you choose.
Using the wrong spacing can lead to issues like uneven pad wear or insufficient braking force. It’s always best to verify the manufacturer’s specifications for your bike frame and brake system to ensure a proper fit.
Cable and Housing
Cable Routing Differences
The cable routing for cantilever and V brakes differs significantly. Cantilever brakes typically have a more complex routing system. The cable runs through multiple guides and may cross over itself. This design can allow for better modulation but might require more attention during installation.
V brakes, on the other hand, have a simpler cable routing system. The cable runs directly from the brake lever to the brake arms. This straightforward design makes installation easier and allows for a cleaner look on the bike. If you switch from cantilever to V brakes, you may need to adjust the cable length and routing accordingly.
Housing Compatibility
Housing compatibility is another factor to consider. Cantilever brakes often use a different type of housing than V brakes. The housing for cantilever brakes can be longer due to the cable routing system. V brakes typically require shorter housing, which makes them easier to manage.
If you’re switching brake types, check if your existing cable housing can accommodate the new system. Using the wrong housing can lead to performance issues and complicate the installation process. It’s best to invest in new cables and housing that are specifically designed for your chosen brake system.
Practical Implications
Switching from cantilever brakes to V brakes or vice versa comes with practical implications. From installation to performance, several factors affect how well your braking system works.
Installation Considerations
Tools and Setup Required
Installing new brakes may require specific tools. Here’s a quick list of tools you might need for the installation:
- Allen wrenches: for mounting the brake arms.
- Cable cutters: to trim cables to the correct length.
- Screwdrivers: for adjusting brake levers and other components.
- Torque wrench: to ensure bolts are tightened correctly without stripping.
The installation process varies slightly between brake types. Follow these steps to set up your new brakes:
- Remove the old brake system carefully.
- Clean the mounting points on the frame and fork.
- Install the new brake arms according to the manufacturer’s instructions.
- Route the cables properly based on the brake type.
- Adjust the brake pads to ensure they make proper contact with the rim.
Once installed, double-check all connections and ensure that everything is secure.
Adjustments Needed for Proper Function
After installation, adjustments may be necessary to achieve optimal braking performance. Follow these steps to fine-tune your brakes:
- Align the brake pads: Make sure the pads contact the rim evenly. Adjust them if they are too high or low.
- Tension the cables: Ensure that the cable tension is appropriate for smooth braking. Too much tension can cause the brakes to rub, while too little can lead to ineffective stopping.
- Test the brakes: Take your bike for a short ride and test the braking system. Make any additional adjustments as needed.
Regular maintenance will also keep your brakes functioning correctly. Check for wear on the brake pads and cables, and replace them as needed to ensure safe riding.
Performance Impact
The choice between cantilever and V brakes can significantly impact your riding experience. From the type of terrain to your personal riding style, different brakes offer varying benefits.
Effects on Riding Experience
Switching brake types can alter your overall riding experience. V brakes provide more stopping power, which can be particularly beneficial for aggressive riding styles or downhill trails. The direct feel of V brakes may boost your confidence when navigating tricky sections.
Cantilever brakes, with their more gradual modulation, allow for finer control. This characteristic is useful for technical trails where precision braking is essential. Riders may prefer this setup for more challenging terrain where avoiding sudden stops is critical.
Considerations for Different Terrains
When selecting brakes, consider the terrain you’ll be riding. V brakes excel on steep descents and rough trails where immediate stopping power is necessary. Their robust design makes them ideal for aggressive mountain biking.
Cantilever brakes, however, shine in mixed-terrain conditions. They perform well in wet and muddy environments, where their ability to shed debris is an advantage. Additionally, their lightweight nature makes them suitable for long rides where minimizing weight is crucial.
Frequently Asked Questions
What are the main differences between cantilever brakes and V brakes?
Cantilever brakes feature two arms that move independently, providing a unique braking feel and modulation. They are typically lighter and easier to adjust, making them suitable for various riding conditions. V brakes, on the other hand, utilize a more robust design with a single cable pulling both arms simultaneously, resulting in greater stopping power and a more direct braking feel. Additionally, V brakes are generally easier to install and offer better clearance for larger tires. These differences can affect the performance and feel of the bike during rides.
Can I switch from cantilever brakes to V brakes on my bike?
Switching from cantilever brakes to V brakes is possible, but it requires consideration of several factors. The bike’s frame and fork must have compatible mounting points to accommodate V brakes. Additionally, you may need to replace the brake levers, as V brakes require different cable tension. It’s also essential to ensure that the brake pads align correctly with the rim. If these conditions are met, the transition can enhance braking performance, providing a more responsive feel while riding.
How do I maintain cantilever and V brakes?
Maintaining cantilever and V brakes involves regular checks and adjustments to ensure optimal performance. For cantilever brakes, ensure the arms move freely and are properly aligned with the rim. Lubricate the pivot points and check the brake pads for wear. For V brakes, inspect the cable for fraying and ensure the pads are aligned correctly. Additionally, regularly clean the rims to prevent dirt buildup, which can affect braking efficiency. Proper maintenance enhances safety and prolongs the life of your braking system.
Which type of brake is better for mountain biking?
The choice between cantilever and V brakes for mountain biking depends on personal preferences and riding style. V brakes are often favored for their superior stopping power and easier installation. They provide a more direct braking feel, which is beneficial when navigating steep or technical trails. Cantilever brakes, while lighter and more adjustable, may not offer the same level of power. Ultimately, the best choice will depend on individual riding habits and the specific demands of the trails being tackled.
Conclusion
Choosing between cantilever and V brakes is not merely a matter of preference; it significantly impacts your cycling experience. By recognizing the key differences, including design, performance, and compatibility, cyclists can make informed decisions that enhance their riding capabilities.
Whether you prioritize weight savings with cantilever brakes or the stopping power of V brakes, understanding these systems is crucial for any cyclist. Selecting the right braking system ensures a safer, more enjoyable ride while exploring the great outdoors, whether on a casual trail or a challenging mountain path.
