The key to a comfortable bicycle ride is a seat post clamp that fits perfectly. To find the perfect fitting seat post clamp, it is important to measure it.

In this article, we are going to uncover the secrets of seat post clamp, most importantly, uncover how to measure seat post clamp size. Interested to learn more about it? Then scroll further and learn!

Importance of Choosing the Perfect Seat Post Clamp

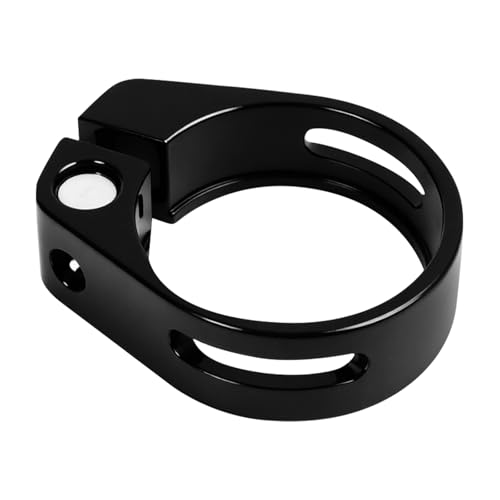

A seat post clamp looks like a horseshoe magnet, attached to the tips by a bolt that is used to alter tension. It has a quick-release lever that is used to modify the position of a seat.

The purpose of a seat clamp is to fasten the seat post to the seat tube; the seat tube is part of the frame where the seat post is attached. If the seat clamp is too big, the seat will wiggle, rotate, or simply fall. On the other hand, if the seat clamp is too tight, it will damage the seat tube.

Imagine how uncomfortable riding a cycle would be if the saddle keeps wiggling or falling!

How to Measure the Seat Clamp

Seat post clamps come in standard measurements of- 28.6mm, 30.0mm, 31.8 mm, 34.9 mm, and 36.4 mm. However, there is no need to be worried if the seat post clamp does not have the standard measurements because other non-standard measures are available as well.

It is important to measure the seat post clamp to find its precise match. In some cases, the measurements of the seat post clamp are available in the manual. The tool of choice for measuring any seat post clamp is a vernier caliper.

Digital Caliper, Adoric 0-6" Calipers Measuring Tool - Electronic Micrometer Caliper with Large LCD Screen, Auto-Off Feature, Inch and Millimeter Conversion

Step 1: Release the In-Frame Clamp

First and foremost, it is important to make sure that the in-frame clamp is released.

This step is important because it allows for the diameter to be measured precisely.

Step 2: Measure the External Diameter of the Seat Tube

Use a vernier caliper to measure the external diameter of the seat tube. Note down the dimensions in a paper.

Once the dimensions of the seat tube are acquired, choosing a seat post clamp is an easy task.

Step 3: Measure the Internal Diameter of the Seat Post Clamp

Again, use the vernier calipers to measure the internal diameter of the seat post clamp. Jot down the measurement on paper.

This step is important because the internal diameter of the seat post clamp size should correspond with the external diameter of the seat tube.

Step 4: Ensure That the Dimensions of the Seat Tube and Seat Post Match

Once the dimensions of the seat tube and seat post are acquired, ensure that the external diameter of the seat tube aligns with the internal diameter of the seat post.

It is important to understand that the seat post clamp should match the diameter of the seat tube, rather than the seat post. This is because the seat post is smaller than the seat tube.

Now, keep reading to know how to use a vernier caliper to measure the seat post clamp!

How to Use Vernier Caliper to Measure

Previously, it was established that vernier calipers play a vital role in measuring seat tubes and seat post clamps. Now, we shall learn how to use vernier calipers to measure the seat tube and seat post clamp.

Step 1: Get to Know Your Tools

Vernier caliper is a measuring tool that has jaws and a screw lock. The jaws can be adjusted by sliding on a small scale.

Here, the larger jaws tighten around the object and can measure the distance between the objects. That way, the external diameter of the object can be measured.

The smaller jaws can fit into an opening of an object, so it is used to measure the internal diameters.

Once an object is in place, tightening the locking screw can ensure that the object is secured.

Apart from that, the main scale is fixed, while the vernier scale is flexible. The vernier scale is a sliding scale that moves when jaws are opened or closed.

Step 2: Clean Your Object of Choice

Wipe the body of the seat tube and seat clamp with a damp cloth. This will remove any dirt or grease.

It is important to follow this step as it will ensure that nothing can interfere with the accuracy of the measurement.

Step 3: Measure the Seat Tube with the Vernier Caliper

Before you measure anything, close the jaws and faces. This will ensure the jaws and faces read zero so that you can have a precise measurement.

After that, you have to open the main jaw and fit it across the seat tube. This can be achieved by sliding the vernier scale.

Then, note the measurements from the main scale. Simultaneously, observe the vernier scale. Notice the mark at which the vernier scale aligns with the line on the main scale, that is the reading of the vernier scale.

After that, simply add the readings of the main scale and vernier scale. Don’t forget to note them down on paper!

Step 4: Measuring Seat Post Clamp with a Vernier Caliper

Once the mystery of the measurements unveils, it is easy to choose a seat post clamp. You can go the extra mile to secure the perfect fitting seat clamp by measuring it.

Slide the inner jaw of the vernier caliper to fit the seat clamp using the sliding scale. Then observe the measurements of the main scale and vernier scale. Lastly, add the numbers to unravel the final measurement.

If the measurement of the seat post clamp aligns with that of the seat tube, then you have found the perfect match.

Final Thought

Many will find the process of measuring the seat post clamp tedious and time-consuming. However, that is not the case. Learning how to measure seat post clamp size is just about finding the right tools and knowing how to operate them to get the desired results.

Just make sure you have the tools at your disposal and follow the simple steps mentioned in the article. You will become a maestro in measuring the size of seat post clamps!
